Introduction
SEETRON has TPMS designed for the off road tire market (OTR) to be used on large vehicles in many applications such as construction, earthmoving, mining, carrying container and farming. The OTR tires are expensive assets and carry very heavy load. The expense of tire and fuel is major cost to operate these vehicles.
TPMS can come down to cost and enhance the safety driving. When the smart phone APP is used for TPMS display, it has the function to send the data to anywhere for management.
In agricultural application, the farmer's tractor should work on road and off-road. During on-road driving, the tire pressure should be inflated to 15 - 41 PSI and during the tractor works in off-road, the tire pressure should be inflated to 6 - 12 PSI to increase tire contact with the soil, improving traction and reducing soil compaction. TP2-AGRIC will monitor the tire pressure and show the best condition of operation. The minor punctures and leaks are very important factors to operate off-road because it always operates very low tire pressure. TP2-AGRIC warns of the low pressure up to 5 PSI and the threshold of warning is programmable.
The OTR TPMS consists of display, repeater and tire sensors.
System overview
The outstanding feature
- Versatile display : Smart phone, PND-5” TFT touch screen, Full graphic LCD
- Versatile tire sensor : Internal and external
- Internal tire sensor : Magnetic or Valve type
- External tire sensor : Valve cap type
- Unique tire sensor of valve stem type for V5-01-1 (TR 618A) tire valve for tractor rim
- Toggle function of on-road or off-road for PND and phone display
- Two pressure warning thresholds for low pressure of the off-road function
- Maximum 9 axles display, Maximum tire numbers are 108 tires for 3 vehicles

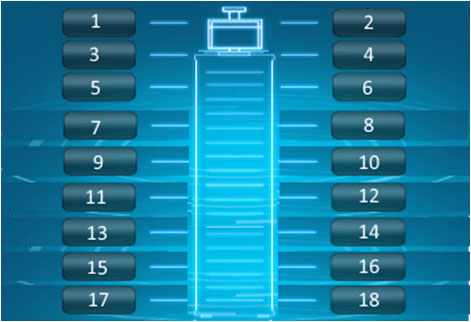

9 axles crane display
- The variety of vehicle selection: It can show the different type of vehicles.
- The selectable vehicle icons are Truck, Crane, Forklift, etc.
Specification of system
Description
Radio Frequency
Operating Temperature internal tire sensor
External tire sensor
OBU
Repeater
TPMS HMI
Communication Tire sensor
OBU
Repeater
Specification Remarks
433/315 MHz, FSK
-40℃ ~ 125℃
-40℃ ~ 80℃
0℃ ~ 50℃
-20℃ ~ 80℃
Smart phone APP
Wireless 433/315 MHz
Wireless 433/315 MHz Bluetooth 4.0
Wireless 433/315 MHz RS 485
Display

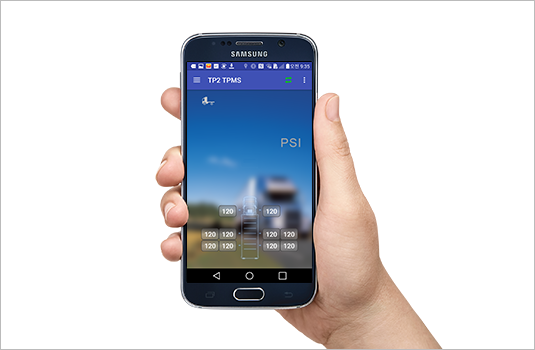

1. Phone display
Most of modern truck/bus drivers have a smart phone and the smart phone has replaced many displays and functions. SEETRON has developed the leading-edge smart phone APP and it is the first full function TPMS APP for OTR TPMS. It is not simple display APP but has full function also.
2. Full graphic LCD display

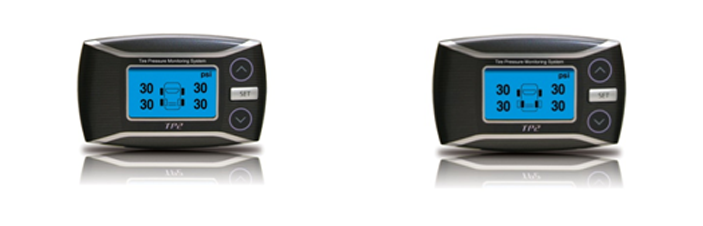

The most compact and economic display and it shows MAX 6 wheels.
- The operating pressure range is up to 87 PSI.
- The selectable number of wheel, 2,4,6 wheels.
3. PND display : 5” TFT touch screen

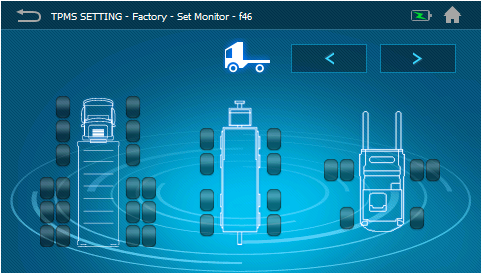

Main display with on-road icon
Main display with off-road icon
- All in one display technology - display, touch-panel, RF receiver, programing hand-held tool,
- The system has 5.0 inches TFT-LCD with touch panel.
- Multiple repeater function - Utility connection - Modem, Rear view camera ( in option )
- Dual threshold of on-road and off-road
- Toggle function icon of on road and off road,

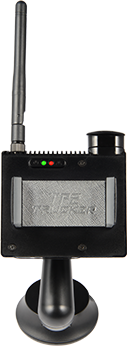

OBU
It is in-cab device is used as the interface between the smart phone APP and the tire sensors by Bluetooth. The TPMS ECU in it is monitoring and controlling the system. It has internal RF receiver, Bluetooth receiver and transmitter,
supporting hand held programming tool by LF transmitter. Also there is the warning and status LED signal display.
Feature :
- TPMS ECU – monitoring and controlling TPM system
- RF wireless receiver with UHF antenna
- Internal Bluetooth receiver/transmitter
- LF hand-held programming tool with LF (125KHz) antenna
- LED light for status and warning display
- Buzzer sound of warning
- Power outlet to recharge the smart phone
- Power inlet to use the phone battery
- Rechargeable battery
Specification of system
Description Specification Remarks
Operation Voltage 9V ~ 36V
Current Consumption Max 30mA(@24V)
Operation Temperature -20℃ ~ 80℃
Communication Mode Bluetooth 4.0 For smart phone
Transmission Frequency 433/315 MHz (FSK)
Transmission Power <10dBm
Receiving Sensitivity -105dBm
LF Transmission 125KHz (ASK) For sensor wake up
Size 80 X 90 X 40 (W X D X H)
Weight 300g

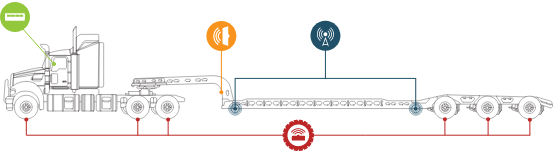

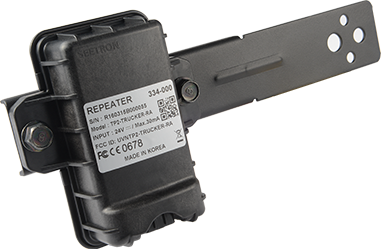

Wireless Repeater on tractor and trailers
Most of vehicles can work with one repeater and install the repeater between monitor and rear tire axle. The repeater shall be located under the frame according to wireless signal strength and distance. There will be no cable connection between a cabin display and repeater under the cabin and it makes the installation easy. The multiple repeaters and receiver can be used for special equipment vehicles or long body vehicles.
The repeater of trailer shall be installed between trailer-tractor and/or 1st trailer -2nd trailer and it is used as the wireless device for a drop-and-hook feature for trailers. The trailer repeater is TPMS ECU and keeps all information of tire sensors.
Feature :
- Wireless transceiver between a cabin display and tire sensor
- Wireless transceiver between tractor and trailer and/or 1st trailer and 2nd trailer
- Rigid design of water and shock proof
- TPMS ECU function of trailer
- Multiple repeaters for full trailers
- Drop and hook for a trailer
Specification
Description Specification Remarks
Operation Voltage 9V ~ 36V
Current Consumption Max 30mA(@24V)
Operation Temperature -20℃ ~ 80℃
Communication Mode Wireless and RS485
Transmission Power <10dBm
Transmission Frequency 433/315 MHz (FSK)
Receiving Sensitivity -105dBm
Connector Type 8pin female(Cable side - TWP08F)
Size 69 X 117 X 34 (W X D X H)
Weight 140g
Tire senor
The tire sensor transmits tire information through an RF signal to the in-cab display and repeater. Current TPMS are separated into two fundamental types, depending on the positioning of the sensors. We are providing external and internal positioning of the sensors both. There are the internal valve stem mounted/internal wheel mounted sensors and external valve stem mounted sensor.
The advantage of internal sensor is:
- Monitoring real temperature of inside tire
The advantage of external sensor is:
- Easy installation
Internal tire sensor – Valve type sensor or Magnetic type sensor
Magnetic type sensor for heavy equipment
The tire sensor is attached to rim by magnet.
Magnet type tire sensor
Mounted on the rim by magnetic adsorption
Valve type sensor for Agricultural tractor
The unique valve-stem type design is applied for tire valve of agricultural tractor. The advantage of unique valve stem sensor is:
- Easy to mount (just same as conventional tire valve stem mounting)
- Robust design
- No breakage during demounting
- Simple to fit (Loosen and Drop)
- Real monitoring of temperature inside tire
TPS/C0-V5-01-1 (TR618A)
TPMS-V5-01-1
Tire sensor mounted

Specification

Frequency 433/315 MHz
Operating temperature -40℃ ~ 125℃ ( - 40 to 257 F)
Operating pressure 100kPa~1500kPa (0 ~ 15 bar)
Battery life 5 years in standard working condition
Size 77 * 39 * 17 mm
Weight 49 g without bracket
External tire sensor – CAP sensor
The cap sensor is mounted to the end of the valve stem in place of the valve stem cap.
Feature:
- Easy to install
- The replaceable battery – battery life time is 2 years
- Water proof
- Anti-theft housing – needs the special designed wrench to remove the cap sensor

Specification

Frequency 433/315 MHz
Operating temperature -40℃ ~ 80℃ ( - 40 to 176 F)
Operating pressure 100kPa~1500kPa (0 ~ 15 bar)
Battery life 2 years in normal condition
Size 27 mm (D) / 23 mm (H)
Weight 15.4g
