There is no reason not to have TP2 for your safety

TP2-RV3

The under inflation should be monitored

TP2-RV3

Why we need TPMS?
The legislation of TPMS had been started at USA from 2007 and the mandatory rule is effective in Europe from 2012 and Korea from 2013.
There might be a discussion against the need of TPMS before these legislation but the TPMS become a common idea of car safety devices.
It is the best choice for safety, fuel economy and reduction of CO2 emission.
Introduction
It is a tire safety device which passes on wirelessly the normal/ insufficient state of the air pressure to the driver by automatically detecting the tire air pressure through a sensor installed inside of the tire.
The driver may check the normal/abnormal status of the tires through a monitor screen installed inside of the vehicle. If a problem with the tire air pressure occurs while driving, an alarm sound and screen display will immediately notify the driver, allowing accidents to be prevented.
TIRE PRESSURE
TEMPERATURE

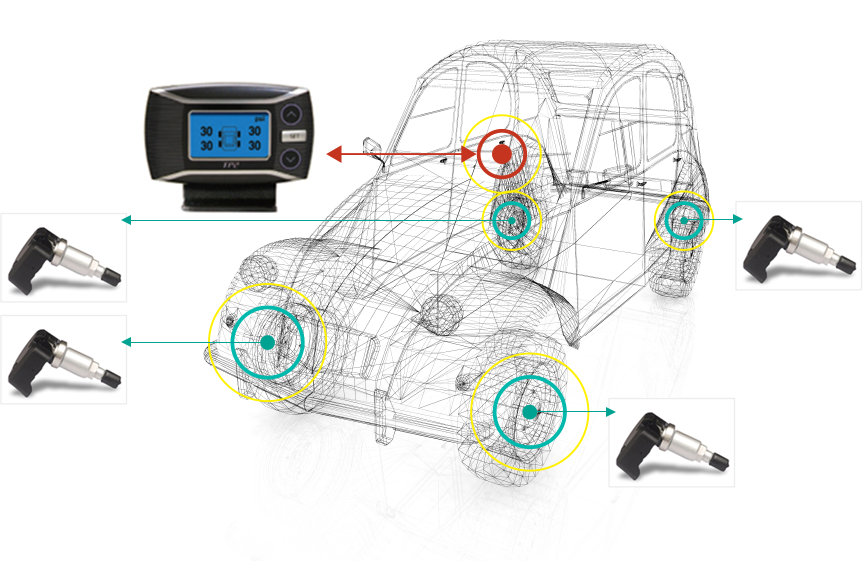

System overview
The outstanding feature
- 3rd Generation: The TP2-RV3 is 3rd generation of RV series and it has rapid transmission of RF data and very stable performance.
- The operating pressure range is up to 87 PSI which can be used in van and light commercial vehicles.
- The LCV ( Light Commercial Vehicle ) can be used in selection of axles, so, you can select 2, 4, 6 wheels.
- The double tires: can be displayed by turns.
- The swivel tire valve: The RV3 tire sensor had very unique designed valve stem and sensor housing. It has a swivel valve stem and can adjust the angle to install tire sensor to wide range of wheels.
- The short valve stem: With this unique design, the short length valve stem like 20.6 mm can be selected for high-end wheels.
- The standard length of valve stem is 37 mm.
On dash with
standard cradle
Front view
Just plug-in
SWIVEL TYPE STEM SENSOR
(Standard length=37mm)
SWIVEL TYPE SHORT VALVE SENSOR
(L=20.6mm)
2 WHEELS DISPLAY
6 WHEELS DISPLAY
Specification of system

SPECIFICATION OF TIRE SENSOR

Radio Frequency 315/433 MHz
Output power Below 102.2 dBuV/m (E.R.P)
Operating temperature -40℃ ~ 125℃, -40℉~257℉
Operating pressure 0 ~ 87 PSI
Dimension 51*31*13 mm (L/H/W)
Weight 28g
Power 3.6 VDC Battery

SPECIFICATION OF MONITER

Radio Frequency 315/433 MHz
Power consumption Below 40 mA
Operating temperature -20℃ ~ 80℃, -4℉~176℉
Dimension 78*48*24 mm (L/H/W)
Weight 70g
Power 12 ~ 24 VDC

TP2-RV3-desert
Tire pressure is most important especially when driving in deserts or mountainous areas. Low pressure alarm mode is available in order to maintain suitable low pressure in off-roads
Specifications:
Low pressure alarm-under 3PSI / Select DESERT MODE in program

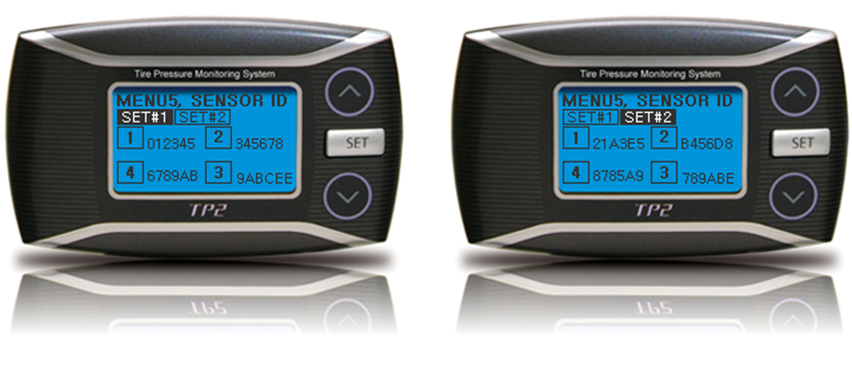

TP2-RV3-winter
When you have the snow tire set with tire sensors separately, you can ask the winter program. It supports the extra 4 tires ID and you can select between SET 1 and SET 2.
